A horizontal platform device for loading, stacking, handling, and transportation of goods and products. The composite pallet made of basalt fiber reinforced material is more durable and larger than wooden pallet, can better meet the pressure in the process of transportation, facilitate loading and unloading, reduce cargo damage and reduce logistics costs, improve packing efficiency.
Product advantages:
a. High strength, safer during transportation.
b. Environmentally friendly, no pollution.
c. Good weathering resistance, long service life.
d. Excellent alkali resistance.
e. Low density, light weight, easy to transport.
f. The surface does not need to be treated, which reduces the transportation cost.

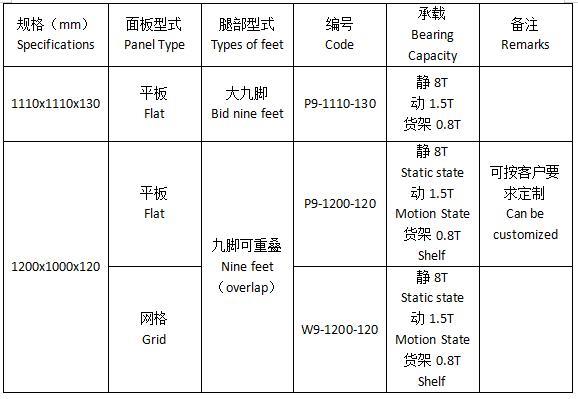

Specifications and models:
P9-1110-130
Annotation
P represents the plate of the panel type, and the other kind of panel is the grid whose code is W.
9 represents the leg mode of “Nine feet” pallet

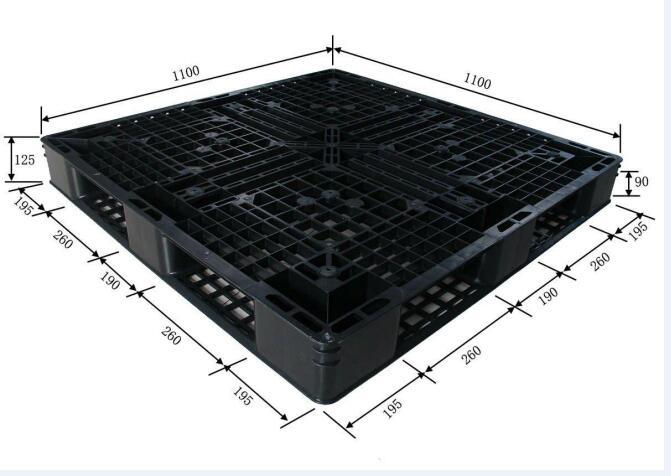

1110-130 represents the size of pallet
Forming Process:
Different from the traditional injection molding or blow molding, LFT-D adopts the resin plus basalt fiber direct roving on-line mixing process.
Basalt direct direct roving, the raw material, is directly drawn by a brand-new direct melting process and through large bushing with 2400 holes. LFT-D is brand new technology for on-line direct production of long fiber reinforced thermoplastic . In such process, both the fiber content and length and the matrix polymer could be directly adjusted to the requirements of the final components.
Performance parameters:
Raw material: PP+Basalt fiber
Process: LFT-D
Heat deflection temperature: 240℃
Bending strength: 150MPa
Flexural modulus: 5400MPa
Notch impact: 21KJ/㎡
Shrinkage ratio: 0.2％
Application field：
Automotive machinery, electronics and electrical appliances, clothing circulation, alcoholic beverages, medicine and food, tobacco, chemical and agricultural products, etc.
